What Schedule 40 Pipe Means for a Piping Project
Schedule 40 shows up on more spec sheets than almost any other pipe designation, and it gets misunderstood just as often. It is not a size, a material, or a brand. It is a wall thickness standard, and knowing what that standard controls changes how a project should specify pipe for pressure, durability, and cost.
Schedule Number Refers to Wall Thickness, Not Diameter
Pipe schedule describes how thick the pipe wall is relative to its outside diameter, not the outside diameter itself. Two pipes can share the same nominal size, say 4 inches, and have different wall thicknesses depending on whether they are Schedule 40, Schedule 80, or another designation. The outside diameter stays constant across schedules for a given nominal size; what changes is how much material makes up the wall, and by extension, the inside diameter and the pressure the pipe can handle.
Where Schedule 40 Sits in the Range
Schedule 40 is the most common general-purpose wall thickness for steel and PVC pipe in industrial, municipal, and plumbing applications. It offers a practical balance of pressure capacity, weight, and cost for moderate-pressure service. Schedule 80 and higher schedules add wall thickness for higher pressure or more demanding mechanical loads, while lighter schedules exist for low-pressure applications where minimizing weight and cost matters more than pressure margin.
Schedule 40 in Steel Pipe

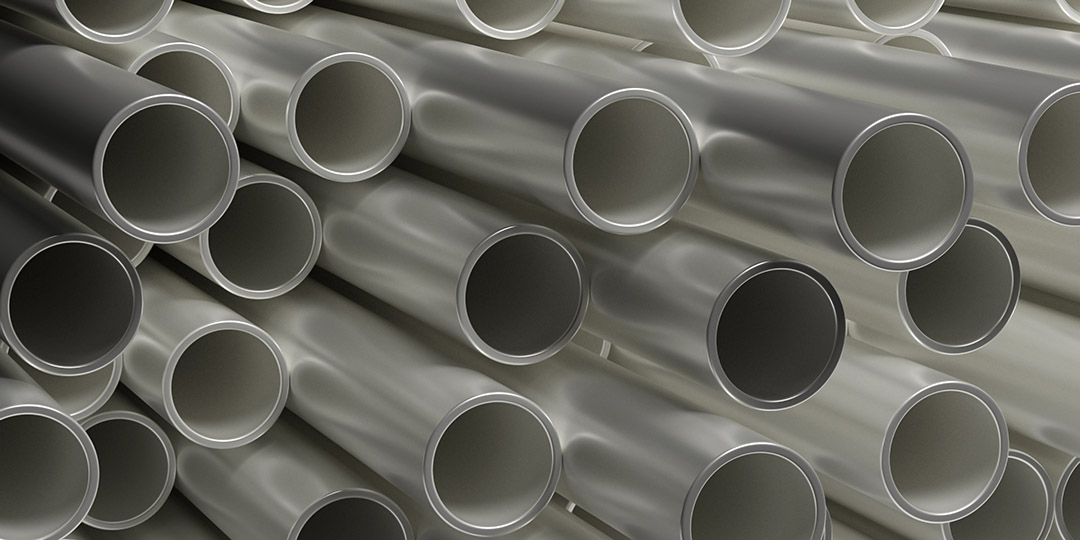

In carbon steel and stainless steel pipe, Schedule 40 is the default specification for a wide range of process piping, structural applications, and general industrial service. It provides enough wall thickness for typical plant pressures while keeping weight and welding time reasonable. ASTM International publishes the dimensional standards, including ASTM A53 and A106, that define Schedule 40 steel pipe wall thickness and tolerances.
Schedule 40 in PVC and CPVC Pipe
Schedule 40 PVC and CPVC pipe follows the same wall thickness logic as steel but is manufactured to a separate standard suited to thermoplastic material properties. It is the standard choice for drain, waste, and vent systems, cold water distribution, and many low to moderate pressure industrial applications where PVC’s chemical resistance and lower installed cost make sense. Schedule 80 PVC exists for higher pressure or higher temperature service in the same material family.
Why Wall Thickness Changes What a Pipe Can Handle
A thicker wall at a given outside diameter means a smaller inside diameter and a higher pressure rating, since more material is available to resist internal stress. This is the same underlying principle that governs SDR and DR ratings on HDPE pipe, even though schedule and SDR use different numbering systems. Specifying by schedule number without checking the actual pressure rating for the pipe’s material and diameter is a common mistake that leads to either an underrated system or unnecessary added cost from oversizing the wall.
| Designation | Relative Wall Thickness | Typical Use |
|---|---|---|
| Schedule 40 | Standard | General industrial, plumbing, moderate pressure service |
| Schedule 80 | Heavier | Higher pressure, threaded connections, more demanding mechanical service |
| Schedule 10 | Lighter | Low-pressure service, stainless steel systems where weight and cost matter |
How Coastal Resource Group Helps You Match Schedule to Application
Specifying the wrong schedule means either an underrated system or paying for wall thickness the application does not need. Coastal Resource Group stocks steel, stainless, PVC, and CPVC pipe, valves, and fittings across common schedules and can help confirm the right wall thickness for the actual pressure and service condition.
- 304 and 316 stainless steel pipe in standard schedules
- PVC and CPVC pipe for chemical and utility applications
- Industrial flanges and fittings matched to schedule and pressure class
- 24/7 support for urgent spec confirmation on active jobs
